Level of Detail, or LOD, allows you to have different variations of an object display at different distances from the camera. By only showing very simple objects farther away, you create less work for the GPU without a great loss of detail up close.
Contents
For objects not from the media repository
Creating Models

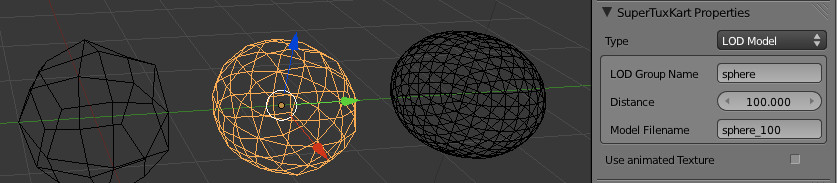

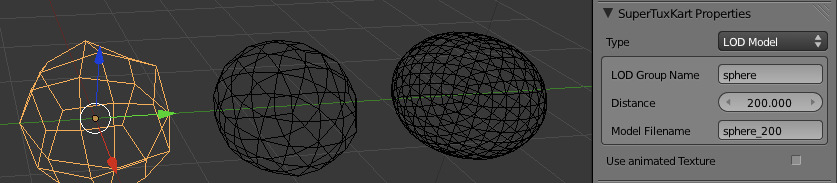

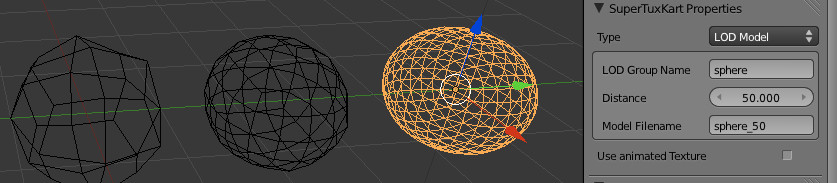

Create three models: one of high quality and a lot of faces, one of medium quality, and one of low quality. For example, a high quality palm tree has a trunk with many sides but the low quality palm tree’s trunk is only two perpendicular planes. Be sure that the transition is not too noticeable.
Now, place all these models somewhere in the track (it doesn’t matter where, since they won’t be visible in the game) and give them the type LOD Model in the SuperTuxKart Object Properties panel. Set the LOD Group Name to the same name for all the objects that are part of the LOD group.
Using an LOD Model In the Scene
To make your models appear in the game, create an object where you want your LOD group to appear. (It doesn’t matter what kind of object—it could be a cube, an empty, a copy of one of the LOD models, etc.—because it won’t be shown in the game.) Set the type of your object to LOD Instance in the SuperTuxKart Object Properties panel and set the LOD Group Name property to the name of your LOD group. Now, when your track is loaded, an LOD model will appear where you placed the LOD Instance object.
Do not set Interaction to “Exact” for LOD instances; this will cause SuperTuxKart to crash. Instead, create a cylinder or cube around the instance and export as a separate object with physics-only interaction. If you’re making a library node, even better, since this users of your library node won’t have to add the collision object themselves.
LOD Standalone
If you do not have the time to make multiple models, you can use the LOD Standalone feature. This means that an object will simply disappear at a certain distance away. Set your object to type LOD Standalone in the SuperTuxKart Object Properties panel, then set the Visibility distance to the distance from the camera at which you want the object to become visible. You can also use the Also export without modifiers feature to export an LOD model without modifiers. This could be useful to reduce poly when using e.g. a bevel modifier.
Using LOD with library objects
Some objects from the media repository are already configured for LOD. For those that are, simply link the object stklib_*_*_main. Don’t link any other object (not main.001, etc.). Objects ending in main are the only ones configured as LOD instances.
